Completing the project of designing, manufacturing, and installing a 6 level system of double girder cranes for Hung Vuong Construction - Vinh Long

Based on the Contract (No. 06.03/23/XDQT-HV) between Quang Trung Industry Group Joint Stock Company and Hung Vuong Construction Factory - Vinh Long, the whole company has implemented the project and completed the project. to the Factory at Zone 4, Co Chien Industrial Line, Long Ho District, Vinh Long

Design, fabrication and installation project of 06 two-girder cranes for Hung Vuong Vinh Long Concrete Factory, including lifting equipment with the following parameters:

- Crane 20T (Two 10T cars), Lk=22m, H = 10m

+ Lifting speed: Vn = 0-8m/p (3 speed levels)

+ Car travel speed: Vd = 2m/p to 15m/p (3 speed levels)

+ Crane travel speed: V = 0-75m/p (3 speed levels)

+ Heavy duty ED 60% (A5)

+ Control the cabin in the house (2 control handles), with a working alarm

+ Operating electricity: 380/220v – 3 phase; 50Hz.

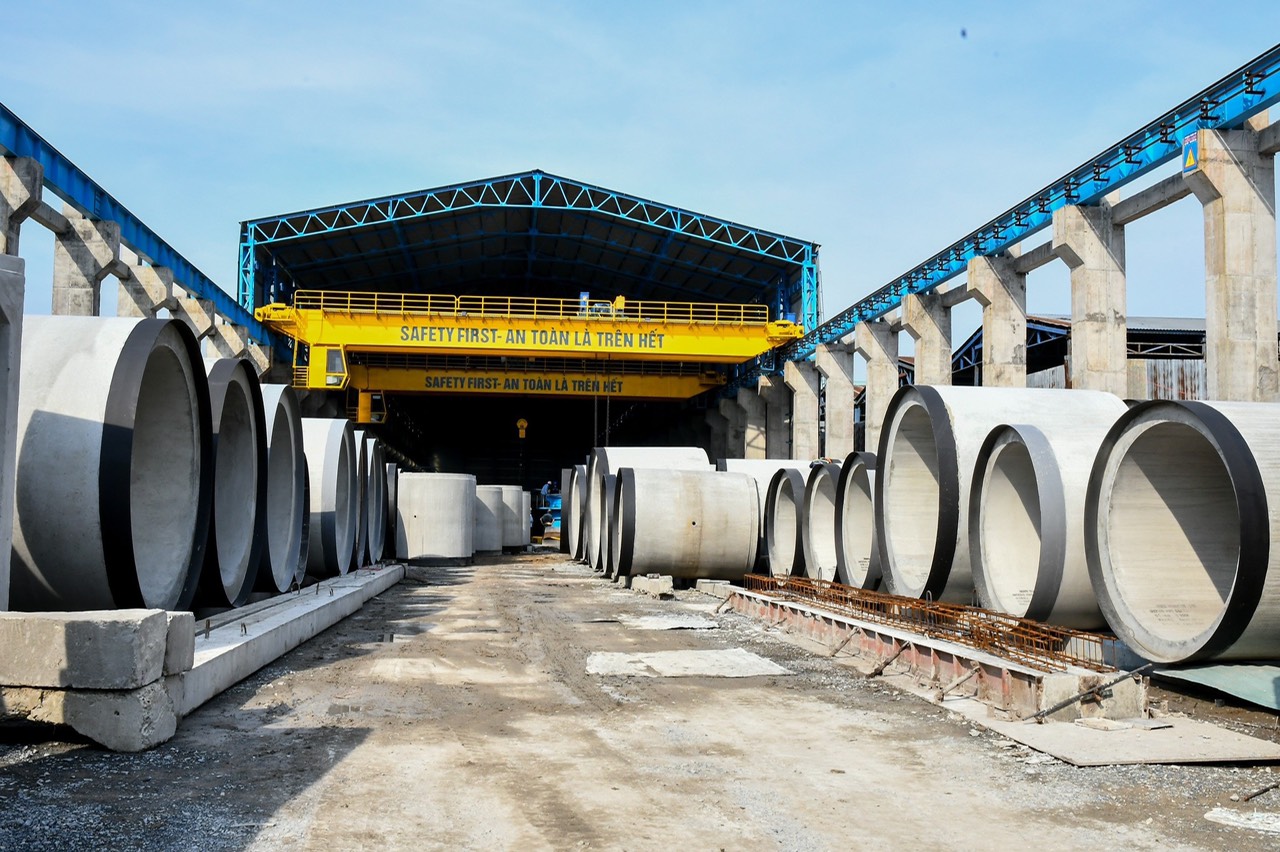

Double girder crane for factory Hung Vuong Concrete Factory - Vinh Long



- Crane 20T (Two 10T cars), Lk=22m, H = 10m:

+ Lifting speed: Vn = 0-8m/p (3 speed levels)

+ Car travel speed: Vd = 2m/p to 15m/p (3 speed levels)

+ Crane travel speed: V = 0-75m/p (3 speed levels)

+ Heavy duty ED 60% (A5)

+ Control the outdoor cabin

+ Operating electricity: 380/220v – 3phase; 50Hz

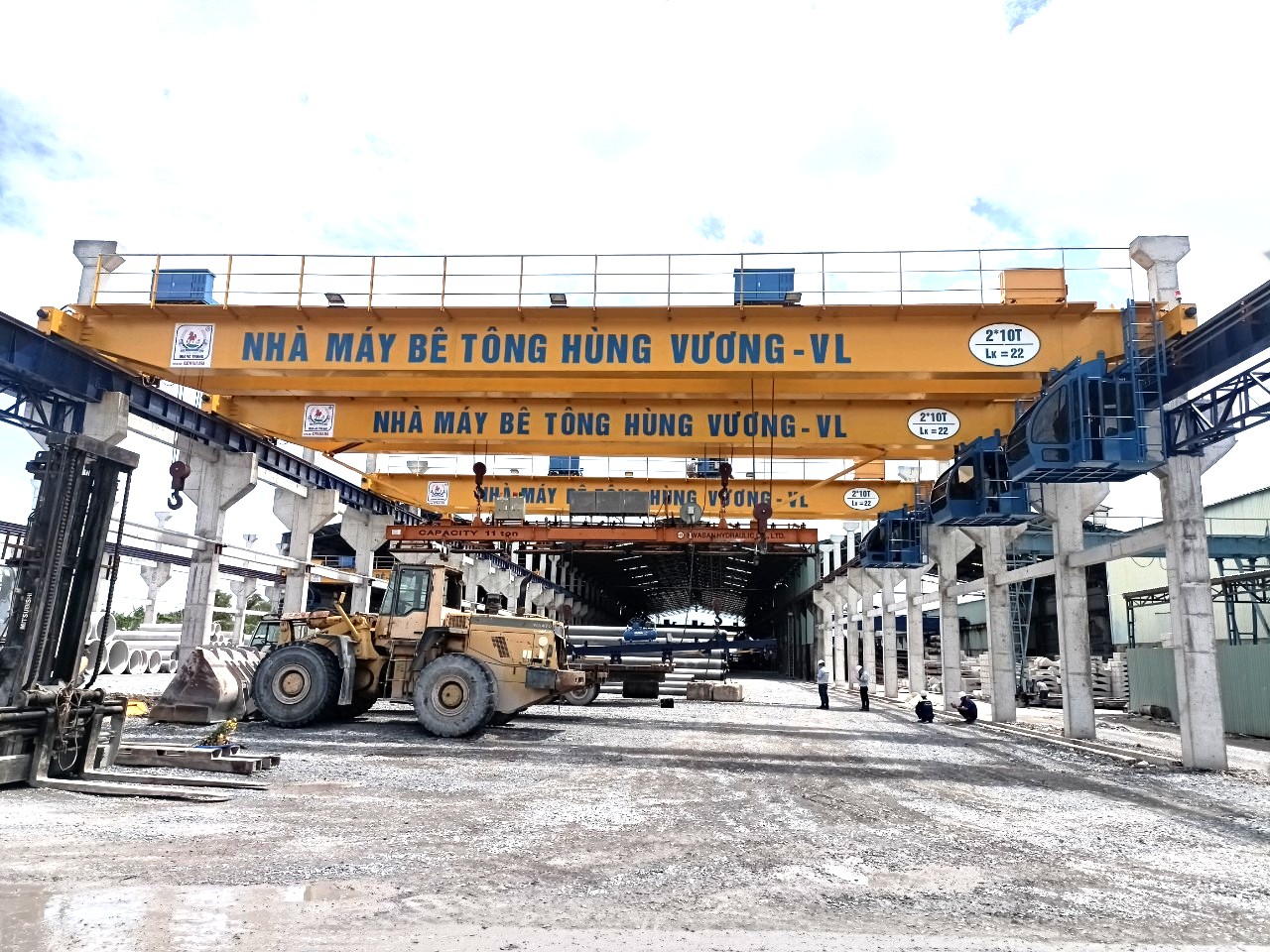

Double girder crane for factory Hung Vuong Concrete Factory - Vinh Long

- Crane 20T (Two 10T trucks), Lk=21.8m, H = 10m:

+ Lifting speed: Vn = 0-8m/p (3 speed levels)

+ Car travel speed: Vd = 2m/p to 15m/p (3 speed levels)

+ Crane travel speed: V = 0-75m/p (3 speed levels)

+ Heavy duty ED 60% (A5)

+ Control the cabin in the house (2 control handles), with a working alarm

+ Operating electricity: 380/220v – 3phase; 50Hz



- Crane 20T (Two 10T trucks), Lk=21.8 m, H = 10m:

+ Lifting speed: Vn = 0-8m/p (3 speed levels)

+ Car travel speed: Vd = 2m/p to 15m/p (3 speed levels)

+ Crane travel speed: V = 0-75m/p (3 speed levels)

+ Heavy duty ED 60% (A5)

+ Indoor and outdoor cabin control (2 control handles), with working alarm

+ Operating electricity: 380/220v – 3phase; 50Hz

Currently, the project has been completed and successfully put into operation by Hung Vuong Concrete Factory - Vinh Long. Quang Trung's Technical Department installs, guides, loads, and is enthusiastically supported by the factory in the process of using the 20 ton double girder overhead crane as some previous projects have done with the Concrete Factory. prefabricated Hung Vuong. In the coming time, the crane is expected to operate continuously for the factory's production here.

Quang Trung Industry Group Joint Stock Company is pleased to be a reliable partner contributing to the construction of Hung Vuong Precast Concrete Factory, hopes to cooperate with many other companies in the field in the near future. construction at home and abroad.

See more: Quang Trung Industry Group Joint Stock Company hands over the construction project of Hung Vuong - Binh Phuoc Concrete Factory
